2023  Big Tex  16GN  - 16GN6281738

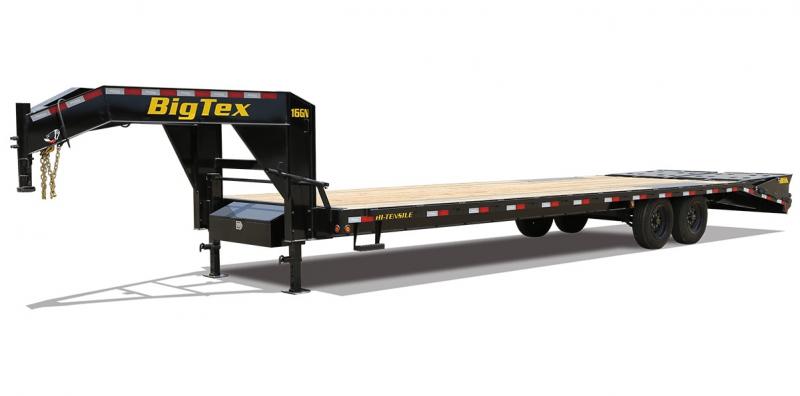

16GN SINGLE WHEEL TANDEM AXLE GOOSENECK TRAILER

The 16GN from Big Tex Trailers is our super-duty, single-wheel gooseneck, delivering more cargo capacity without the need for dual-wheel axles. This model combines the Big Tex features you know and love, like a pierced beam, low-profile, high tensile steel frame, dual 12,000# drop-leg jacks, an integrated toolbox and Dexter Axles. Plus its also available with versatile Mega ramps - providing a professional-grade trailer that packs the punch you need for hard work at an exceptional value.

SPECS

AXLE (2) 8,000# Oil Bath w/Electric Brakes
JACK Dual 12,000# Drop Leg Side Wind (Bolted On)
NECK 12" I-Beam, 14#
TIRE ST215/75 R-17.5 Load Range H
FLOOR 2" Treated Pine or Douglas Fir*
FRAME 12" I-Beam, 14# (16# on 28 Trailer and Longer)
WHEEL 17.5" x 6.75"; Black Mod 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn and Clearance
COUPLER 2-5/16" Ball Adjustable Pipe
DOVETAIL 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps
G.V.W.R. 17,500#
ELEC. PLUG 7-Way RV
HITCH TYPE Gooseneck
SIDE RAILS 5" Channel w/Rub Rail, Stake Pockets, and Chain Spools
SUSPENSION Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS 3" Channel
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)
G.A.W.R. (Ea. Axle) 8,000#

While we strive to represent our trailers with 100% accuracy - please call to confirm details of trailer.
